UGREEN Gigabit 10/100/1000Mbps PCI Express Network Adapter (US230, 30771) – Internal LAN Card for Desktops

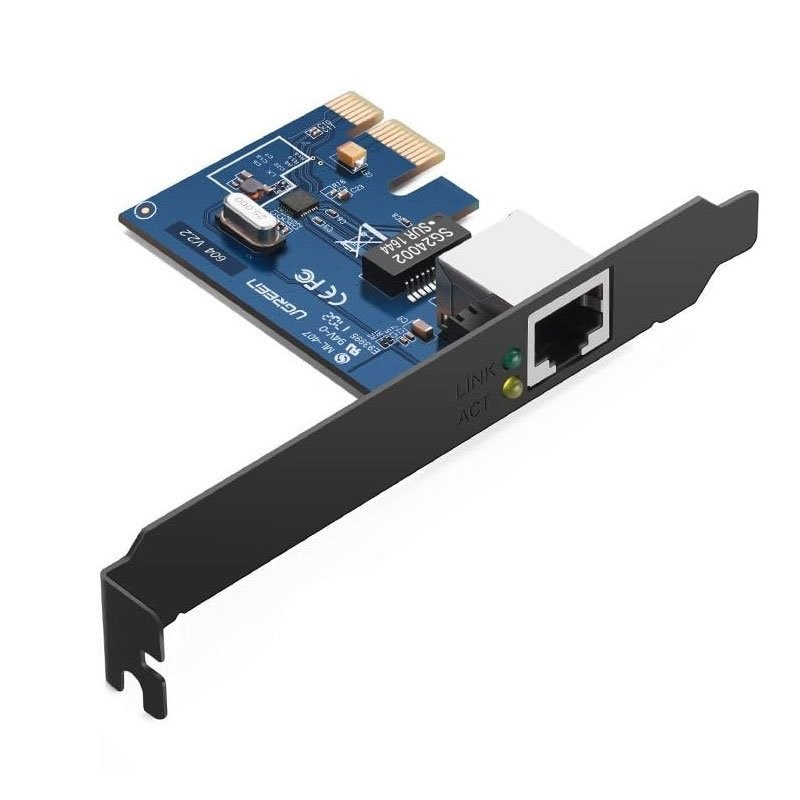

The UGREEN Gigabit 10/100/1000Mbps PCI Express Network Adapter (US230, part 30771) is an internal network card that adds a Gigabit RJ45 Ethernet port to a desktop through a PCI Express x1 slot. It also fits x4, x8 and x16 slots. It runs at 10/100/1000Mbps with auto-negotiation and full or half duplex, using a Realtek RTL8111G controller. It supports IEEE 802.1Q VLAN and jumbo frames up to 9KB, so it also suits small servers and managed networks. The box includes a standard 12cm bracket and an 8cm low-profile bracket for slim and small form factor cases, plus a driver disc. The RJ45 contacts are gold-plated.
An internal card is a tidy, permanent fix when a desktop’s onboard LAN port has failed or the PC needs a second network port. For example, a cyber café in Kawangware can replace dead onboard LAN ports on several towers after a power surge, without buying new motherboards. A SACCO in Meru can add a second network card to a desktop so it can reach both the internal banking network and the internet. Likewise, an IT technician can build a small pfSense firewall or home server from an old desktop by adding a second Gigabit port.
Key Features
In short, this UGREEN Gigabit PCI Express network adapter stands out in five areas:
- Gigabit RJ45, 10/100/1000Mbps auto-negotiation
- PCIe x1 card, fits x1/x4/x8/x16 slots
- Realtek RTL8111G controller
- 802.1Q VLAN and 9KB jumbo frames
- Standard and low-profile brackets included
Technical Specifications
Specifically, the table below details every core specification of the UGREEN Gigabit PCI Express network adapter:
| Specification | Details |
|---|---|
| Brand | UGREEN |
| Model | US230 |
| Part Number | 30771 |
| EAN | 6957303837717 |
| Interface | PCI Express x1 (compatible with x1/x2/x4/x8/x16 slots) |
| Network Port | 1× RJ45 Gigabit Ethernet |
| Speed | 10/100/1000Mbps, auto-negotiation |
| Duplex | Full and half duplex |
| Controller | Realtek RTL8111G |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1Q VLAN |
| Jumbo Frames | Up to 9KB |
| Contact Plating | Gold-plated RJ45 |
| Brackets | 12cm standard + 8cm low-profile |
| Operating Systems | Windows 11/10/8.1/8/7/Vista/XP, Linux |
| In the Box | 1× US230 PCIe network card, 1× 8cm low-profile bracket, 1× driver disc |
Who This Is Best Suited For
As a result of this combination of specs, three types of users benefit most:
- Cyber cafés and offices replacing failed onboard LAN ports on desktops
- Banks, SACCOs and IT teams adding a second network port for separate networks
- Technicians and home-lab users building firewalls, routers or small servers
