UGREEN HDMI over Ethernet Extender 50m (UK)

KSh 5,500.00

Enquire About This Product
In StockReady to ship
  • Fast DeliveryWe deliver to all towns & cities in Kenya
  • Warranty InclusiveThis product is covered by warranty
UGREEN HDMI over Ethernet Extender 50m (UK)
UGREEN HDMI over Ethernet Extender 50m (UK)
KSh 5,500.00

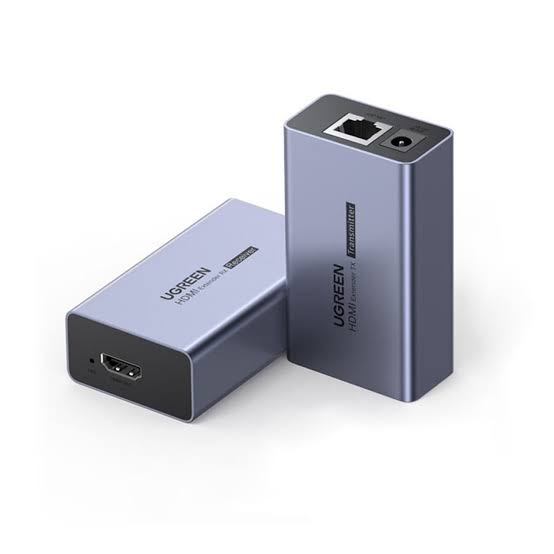

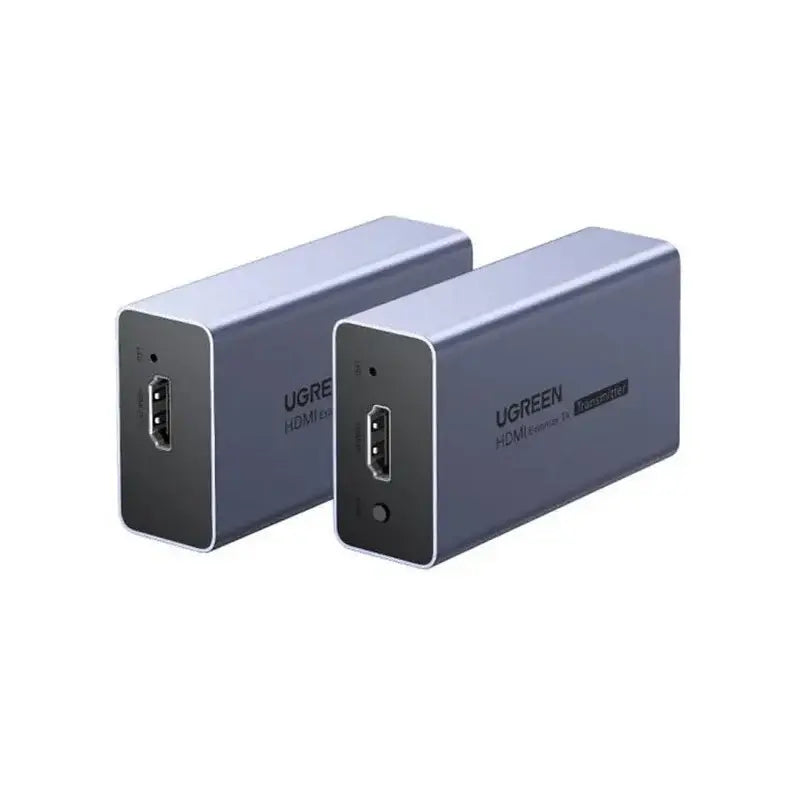

UGREEN HDMI over Ethernet Extender 50m (UK) (CM609) – Full HD Over a Single Network Cable

The UGREEN HDMI over Ethernet Extender 50m (UK) (CM609, 90811UK) is a transmitter and receiver kit that sends HDMI video and audio up to 50 metres over one Cat5e or Cat6 network cable. As a result, it replaces long, heavy HDMI cables with low-cost Ethernet cabling that is easier to route through walls and ceilings. It carries 1080p@60Hz Full HD with 3D support, and it passes HDCP 1.4 protected content from decoders and streaming devices. In addition, it handles PCM 2.0 stereo audio up to 24-bit/192 kHz, and EDID auto-recognition helps the source pick the right resolution for the display. Both units are plug and play, needing no drivers, and the kit ships with UK-plug power for Kenyan sockets.

Many Kenyan offices, schools and churches already have Cat6 cabling in the walls, yet the screen they need to feed is too far for an HDMI cable. Therefore, an office block in Kilimani can send a reception PC’s display to a lobby screen two floors away using a spare network run. Similarly, a church in Embakasi can feed the main service to a TV in an overflow room or children’s area. Furthermore, a bank branch or supermarket in Machakos can drive a queue or promotion screen from a back-office computer. Because Ethernet cable is thinner and cheaper per metre than HDMI, installation is often simpler. For 4K content, a 4K-rated extender is needed instead.

Key Features

In short, this UGREEN HDMI extender stands out in five areas:

  • Up to 50 m over one Cat5e/Cat6 cable
  • 1080p@60Hz Full HD with 3D
  • HDCP 1.4 and EDID auto-recognition
  • 24-bit/192 kHz PCM stereo audio
  • UK-plug power, plug and play TX/RX kit

Technical Specifications

Specifically, the table below details every core specification of the UGREEN HDMI over Ethernet Extender 50m (UK):

SpecificationDetails
BrandUGREEN
ModelCM609
SKU90811UK
Product TypeHDMI over Ethernet extender (transmitter + receiver)
Transmitter Ports1 × HDMI in, 1 × RJ45 out
Receiver Ports1 × RJ45 in, 1 × HDMI out
Maximum DistanceUp to 50 m
Cable RequiredSingle Cat5e or Cat6 (Cat6 recommended)
Maximum Resolution1080p @ 60Hz
Video BandwidthUp to 4.45 Gbps
Colour FormatsRGB, YCbCr 4:4:4, YCbCr 4:2:2; 8-bit colour depth
3DSupported
HDCPHDCP 1.4
EDIDAuto-recognition / EDID copy
AudioPCM 2.0 channel, up to 24-bit/192 kHz
Power5V DC (5.5 mm connector), UK plug
Operating SystemsWindows, macOS, Linux (no drivers)
Dimensions (per unit)82 × 47 × 25 mm
ColourBlack
In the Box1 × transmitter, 1 × receiver, UK power supply (quantity unconfirmed)

Who This Is Best Suited For

As a result of this combination of specs, three types of users benefit most:

  • Offices with existing Cat6 cabling – reception or boardroom PC to a distant screen
  • Churches and event halls – live feed to an overflow room
  • Banks and retail stores – back-office PC to queue or promo screens
