UGREEN Network Cable Tester (LY) – RJ45 and RJ11/RJ12 Continuity Tester

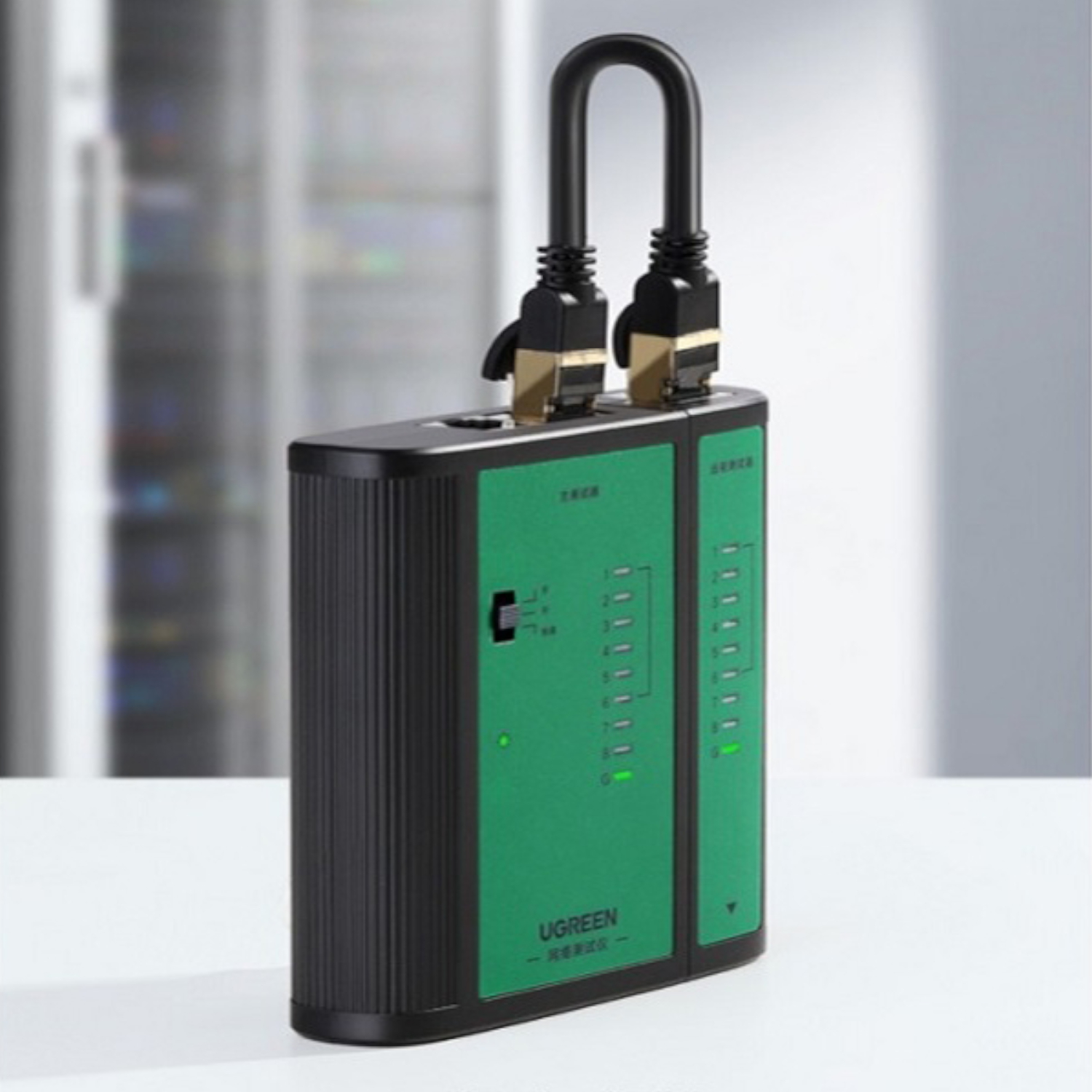

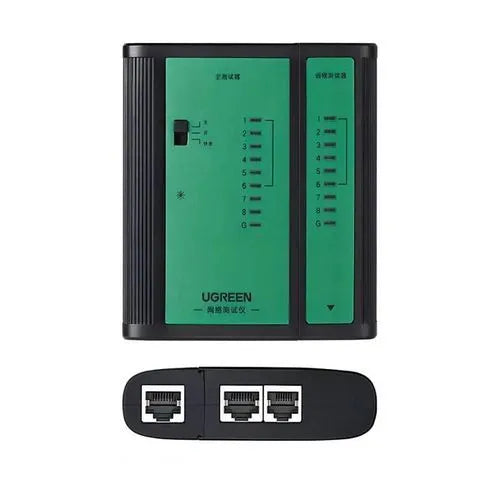

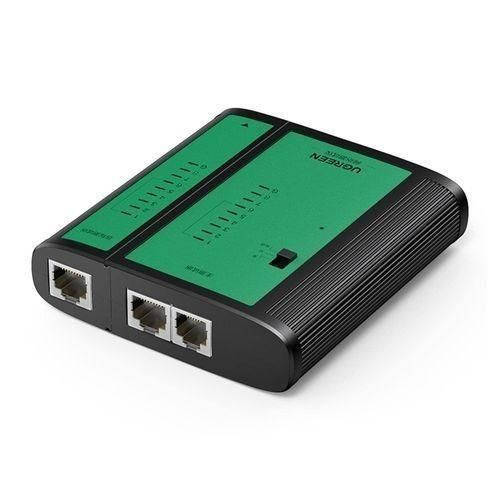

The UGREEN Network & Telephone Cable Tester NW167 (10950), also listed as the LY model, is a handheld tester that checks whether Ethernet and telephone cables are wired correctly. It tests RJ45 (8P8C) network cables and RJ12/RJ11 (6P6C, 6P4C, 6P2C) telephone cables, in both shielded and unshielded versions. The kit has a main unit and a detachable remote unit, so you can plug in each end of a cable, even when the ends are in different rooms. LED indicators then show each wire in sequence, which reveals open circuits, shorts and crossed wires. In addition, the PC+ABS housing is light enough for a toolbag, and it runs on a 9V battery.
A freshly crimped cable can look fine yet fail because one wire sits in the wrong slot or did not seat fully. Therefore, testing every cable before installation saves a return trip to the site. For example, an installer wiring an office in Westlands can check each wall-port run from the patch panel, while a CCTV technician in Machakos can confirm a camera cable before mounting the camera. Likewise, it helps IT staff trace whether a dropped connection comes from the cable or from the router. Note that it is a continuity and wiring tester, so it does not measure speed or certify Cat6 bandwidth.
Key Features
In short, this UGREEN cable tester stands out in five areas:
- Tests RJ45 and RJ11/RJ12 cables
- Detects opens, shorts and miswires
- Detachable remote unit for installed cable runs
- LED wire-by-wire indicators
- Shielded and unshielded cable support
Technical Specifications
Specifically, the table below details every core specification of the UGREEN Network Cable Tester NW167:
| Specification | Details |
|---|---|
| Brand | UGREEN |
| Model | NW167 (LY) |
| SKU | 10950 |
| EAN | 6957303819508 |
| Product Type | Network and telephone cable continuity tester |
| Ports (per unit) | RJ45 (8P8C) × 1, RJ12 (6P6C) × 1 (RJ11 compatible) |
| Supported Cables | 8P8C RJ45 network; 6P6C RJ12, 6P4C and 6P2C RJ11 telephone |
| Shielding Support | Shielded and unshielded |
| Ethernet Categories | Cat5, Cat5e, Cat6 |
| Test Functions | Continuity, open circuit, short circuit, miswire |
| Indicators | LED wire indicators, operating status light |
| Units | Main unit + detachable remote unit |
| Power | 9V battery (not included) |
| Housing Material | PC + ABS |
| Colour | Black / green |
| Weight | 200 g |
| Dimensions | 15.7 × 11 × 2.9 cm |
Who This Is Best Suited For
As a result of this combination of specs, three types of users benefit most:
- Network installers – verify wall-port and patch-panel runs
- CCTV technicians – check camera cables before mounting
- Office IT and telecom staff – diagnose LAN and phone-line faults
Once every cable passes, connect your workstations from our HP Desktops range.
